PTC 5 – NYRS

We can now ship the PTC 5s. Contact us for more information. The user manual is now available here. The utilizes an LCD touch screen that gives a lot of freedom developing a user interface. We had intended to sell it in the same price range as the old system but import duties have increased the price to higher than what we would like but it is going to be the best turntable indexer on the market.

Close loop system stepper-absolute encoder,
Faster/Easier Programming, Editing – Add/Remove/Edit track positions at any time.
LCD Touchscreen
DCC control coming later
Multiple motor sizes for different scales
Will include System Enclosure, LCD Touchpad, Stepper Motor

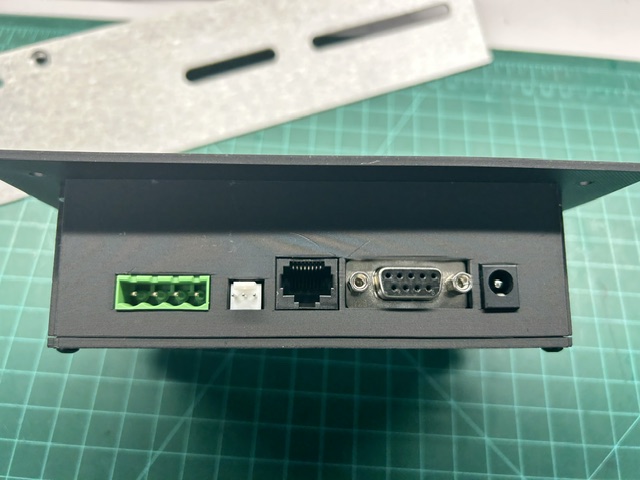

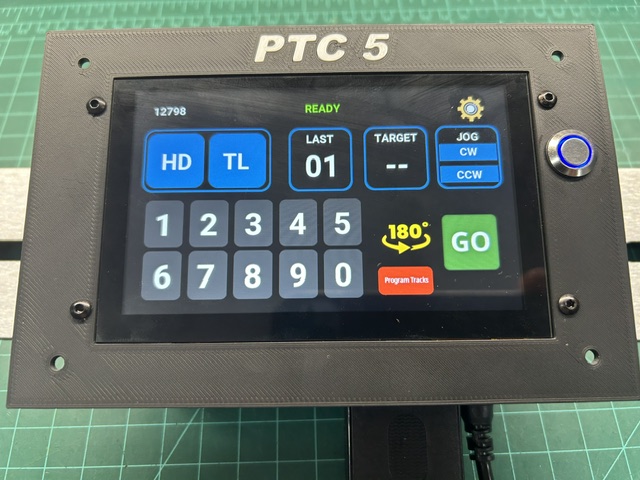

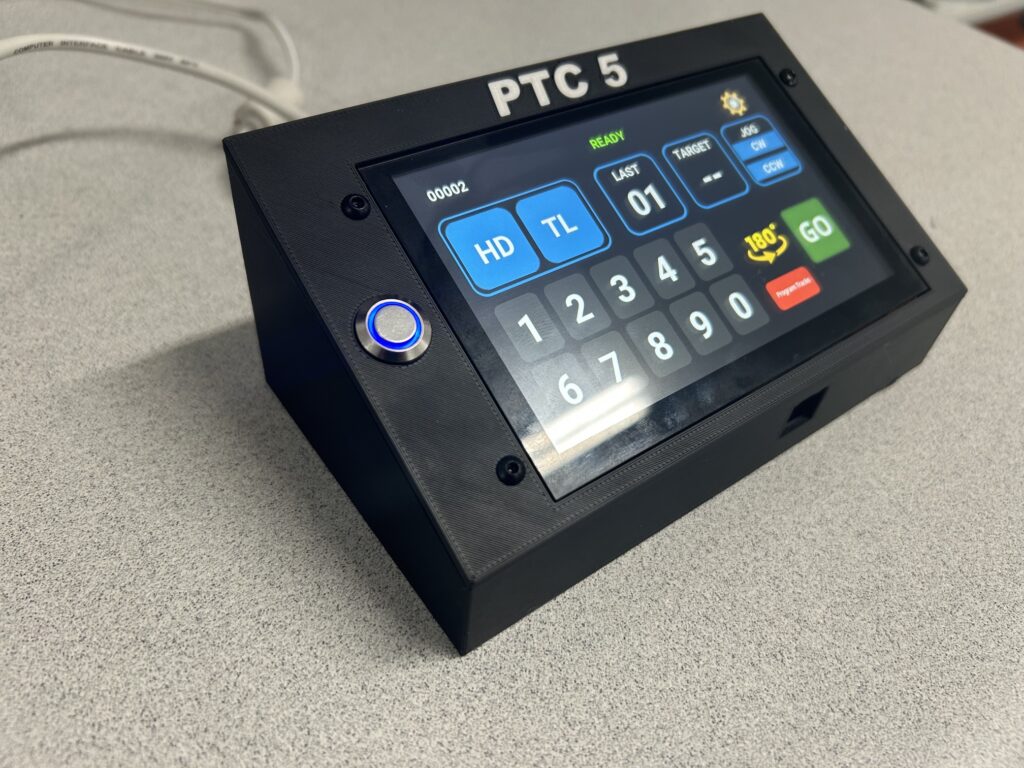

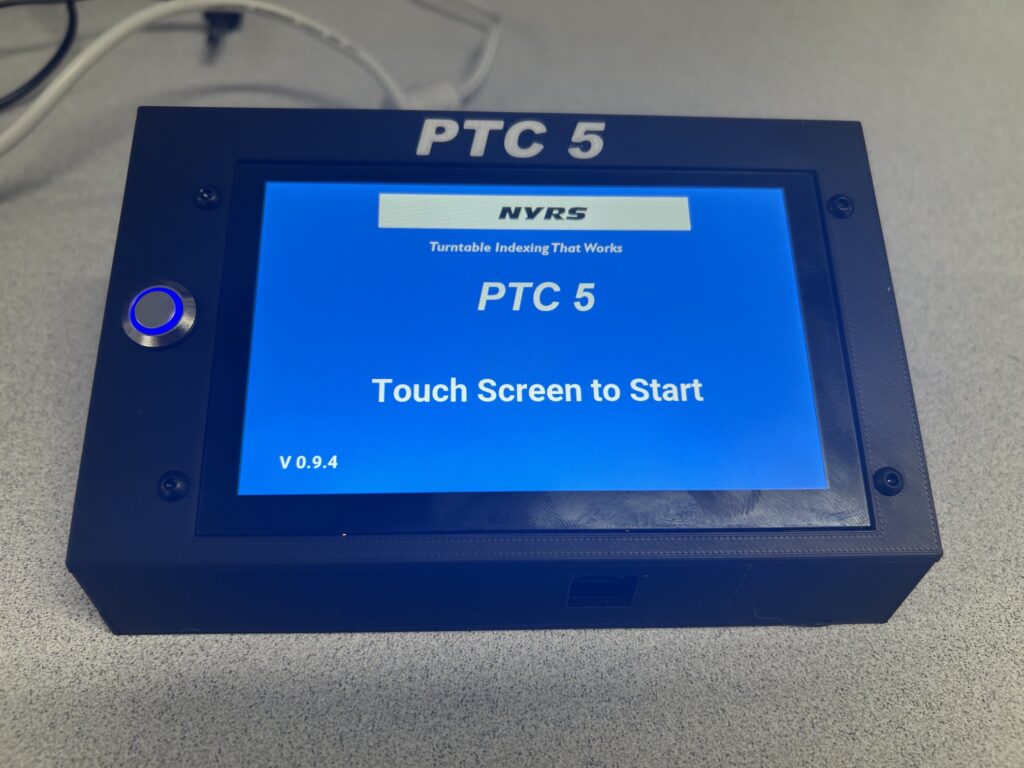

Unit shown with 3d Printed panel. Production units will have our anodized aluminum with white printing as always.
Price – See ordering page.

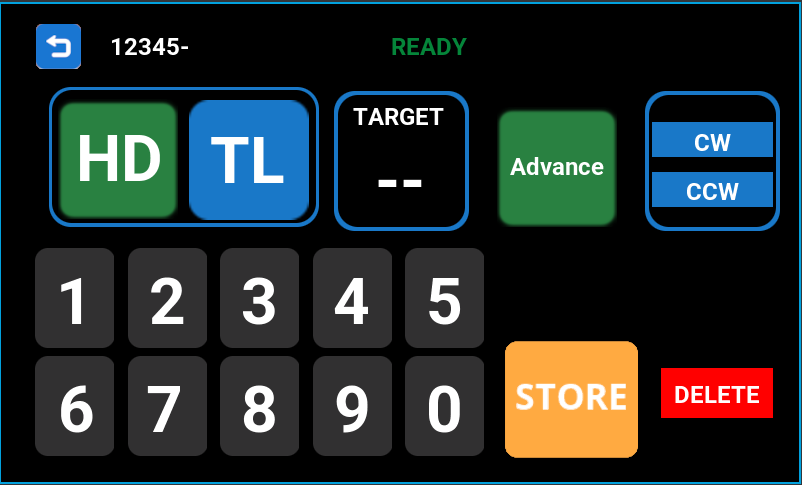

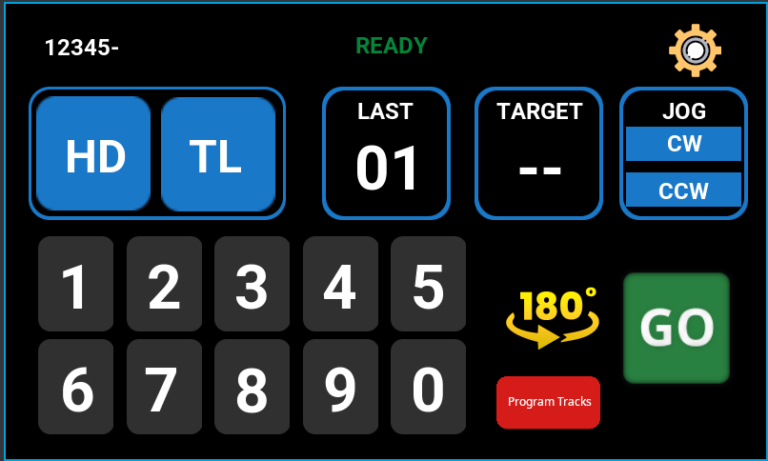

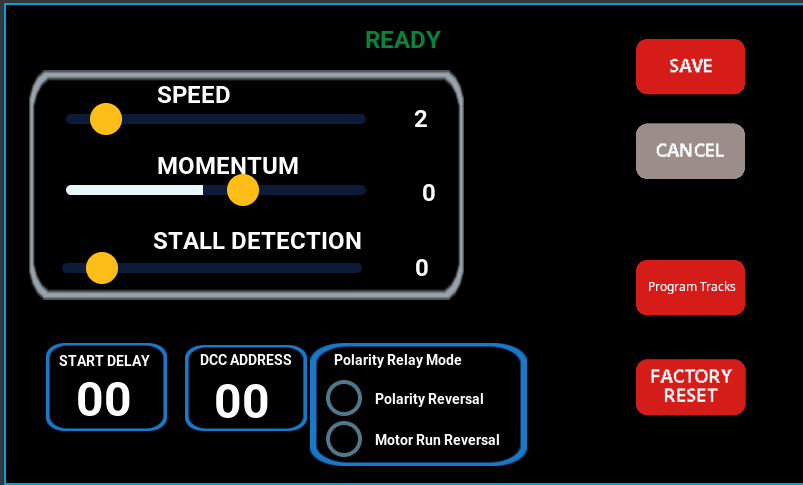

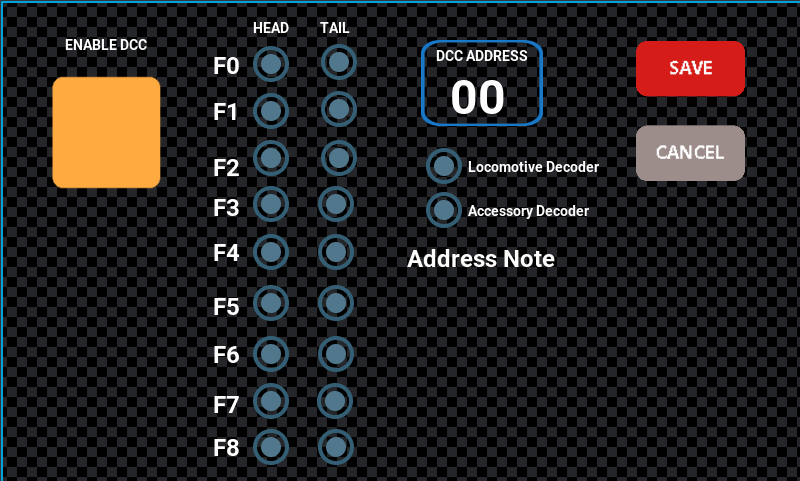

These are the Run, Program, Settings and DCC setup screens for the PTC5. To program you only have to manually turn the bridge with your hand to point to the desired track. Press HEAD or TAIL and the track number and hit store. That’s it. To edit a track you basically do the same thing. No longer do you have to run the bridge at 1 rpm to get to the track you want to add, delete or store. DCC can be run as a locomotive or an accessory decoder. See operators manual for details.
